SlingShot Maritime System

SlingShot is a lightweight unit that converts existing tactical radios to TacSat, maintaining real-time BLOS comms in all situations and locations.

Providing low-latency voice and data connectivity to tactical radio networks and utilising L-TAC, Inmarsat’s I-4 L-band network, SlingShot delivers Beyond Line of Sight communications to users of UHF and VHF radios.

  • Designed to support in-service radios
  • Supports UHF & VHF military and commercial frequencies
  • Omni-directional antennas
  • Utilises Narrow Beams, Customised Beams and Relocatable Beams
  • Lease airtime is flexible according to requirement
  • Data enabled

There are SlingShot options for Aviation, when on foot (SlingShot Manpack), in a land-based vehicle (SlingShot Vehicle) or on water (SlingShot Maritime).

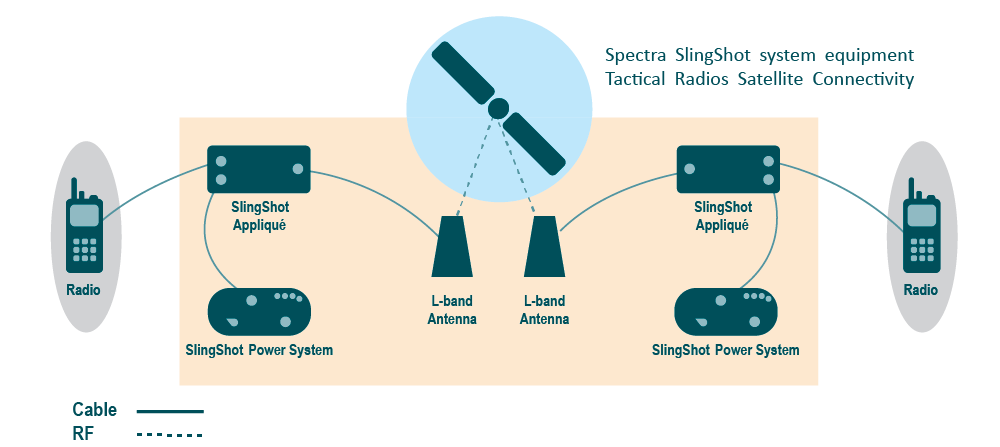

SlingShot Appliqué

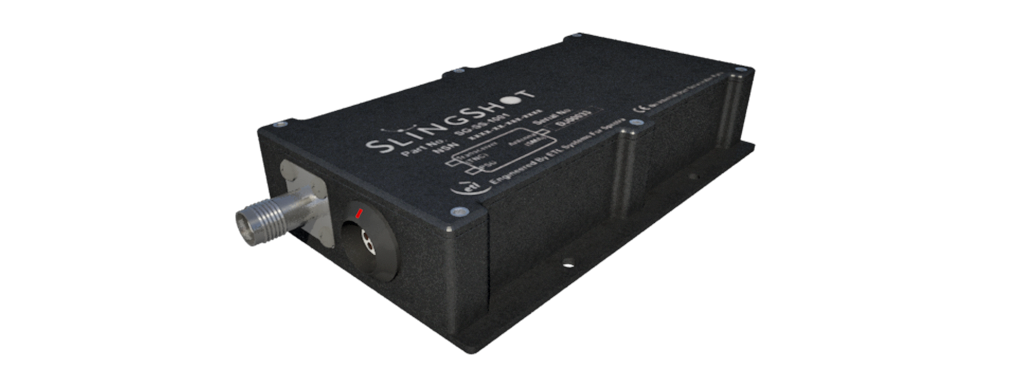

SlingShot Maritime System UHF Applique

The SlingShot Appliqué is the heart of the system. Weighing only between 489 g (UHF) and 550 g (VHF) it converts RF to commercial satellite frequency, working with the majority of in-service radios. Any Crypto is untouched by the Appliqué and is therefore maintained.

SlingShot Maritime Antenna

SlingShot Maritime System L-Band Antenna

The SlingShot Maritime Antenna is omni-directional, so will maintain satellite communication, no matter which way you are heading. It has been tested at speeds up to 40 Knots with high-speed turns (74 kph) without loss of voice or data communications.

SlingShot Maritime Power


The SlingShot Maritime and Vehicle systems are powered via the SlingShot UPSU. The UPSU can be run directly from the craft, plug into a cigarette lighter, or be run from mains. The UPSU powers the Appliqué which, in turn, powers the Antenna, which can be pole mounted or fixed with a magnetic plate.

Click here to request the brochure for SlingShot

For more information or a demo of SlingShot please get in touch

For more information on each SlingShot system, choose the appropriate image below
